配件料號(hào)：

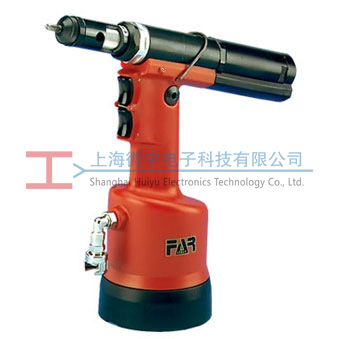

| 型號(hào)： | KJ60 | ||
| Articleno. | Designation | Articleno. | Designation |
| 721779 | tool body | 718210 | Gasket TS-10-18-5,8/L |
| 712269 | body cover | 711727 | Screw VSP-4X8 UNI 5933 |
| 711684 | cylinder bottom | 712037 | Inox filter φ6x4 |
| 721685 | pneumatic piston | 711092 | key mm 5 |
| 711780 | connector | 711728 | 0 Ring-2-16 P |
| 721689 | 0leodynamic cylinder | 711730 | O Ring -2-119(N552/90)P |
| 711781 | stem | 710367 | 0 Ring -2-8 P |
| 711691 | silencer | 710376 | 0 Ring -2-9P |
| 711692 | screw m7x1 | 710918 | 0 Ring -2-5P |
| 711782 | ramener | 710919 | 0 Ring-2-4P |
| 711694 | lower coil | 710003 | 0 Ring -5-052 P |
| 711695 | threaded sleeve | 710342 | 0 Ring -2-17 P |
| 721698 | valve body | 710594 | 0 Ring -2-12 P |
| 711700 | upper coil | 711061 | 0 Ring -5-614 P |
| 711701 | upper valve body | 711731 | 0 Ring -2-18(N552/90)P |
| 711702 | plate | 711732 | 0 Ring -2-118 P |
| 711703 | valve body | 710258 | 0 Ring -5-612 P |
| 711704 | valve piston | 711734 | 0 Ring -2-232 P |
| 710839 | 0il tank plug | 711735 | 0 Ring -2-40 P |
| 711705 | push-button | 711834 | Silencer |
| 711713 | spacer | 711917 | Parbat 8.119 |
| 710854 | balancer hook | 711933 | Seeger ring JV24 |
| 721387 | Oil container | 712159 | Protection bottom |
| 711783 | Motor cover | 722047 | Safety valve assembly |
| 72A00126 | Motor FOO2 | 712153 | Rod locking spring |
| 711785 | Motor protection sector | 712132 | Rotating connector |
| 711786 | Ring nut for motor | 713341 | 0 Ring 1x4 |
| 711787 | Stop ring | 741702 | plate kit |
| 712670 | Clutch | 711702 | plate |
| 711790 | Piston return spring | 711727l | screw vsp -4x8 uni 5933 |
| 711791 | Ball locking spring | 741713 | spacer kit |
| 711792 | Ball bushin | 711713 | spacer |
| 712270 | Rod | 710902 | seeger ring e 16 |
| 711794 | Oleodynamic Piston | 711933 | seeger ring jv 24 |
| 711795 | Front connector | 741 802 | clutch for tie rod kit |
| 711796 | Shat | 711800 | spring disengagement tie rod |
| 711797 | Milled sleeve | 711802 | clutch for tie rod |
| 711798 | Stroke adjusting nut | 710537l | spring pin 4x 12 |
| 711799 | Stroke adjusting knob | 741705l | push-button kit |
| 711800 | Spring disengagement tie rod | 711705 | push-button |
| 711801 | Head carrying tie rod | 711726l | pin 2x 20 unl 1707 |
| 711802 | Clutch for tie rod | 741792l | ball bushing kit |
| 711803 | Head ring nut | 711792l | ball bushing |
| 711804 | Ring nut | 711816 | ball Φ 2，5 |
| 711805 | Head M3 | 713341 | 0 ring 1x4 |
| 711806 | Head M4 | 7000043 | tie rod container kit |
| 711807 | Head M5 | 71345169 | Connector |
| 711808 | Head M6 | 71c00764 | Bearing 61801 |
| 711809 | Head M8 | 71345646 | Gear cage |
| 711810 | Tie rod M3 | 71345644 | Planetary gear |
| 711811 | Tie rod M4 | 71345643 | Crown gear |
| 711812 | Tie rod M5 | 71345642 | Washer |
| 711813 | Tie rod M6 | 71C00763 | Bearing AY7 ZZ C2 |
| 711814 | Tie rod M8 | 71345640 | Connector |
| 710876 | Pin disengagement tie rod | 71C00761 | Spring pin |
| 710906 | Hermetic washer 400-820 | 71345639 | Tongue |
| 711726 | Pin2x20UN1707 | 71345638 | Rotor |
| 710537 | Spring pin 4x12 | 71345637 | Outside body |
| 711815 | Ball φ3.5 | 71345641 | Back cap |
| 710911 | Ball φ4 | 71G00794 | Pin Φ2x9,8 |
| 711816 | Ball φ2.5 | 71C00762 | Bearing 695-ZZ |
| 711817 | Seeger ring 118 | 710376 | Gasket OR 2-009 PARKER |
| 710902 | Seeger ring E16 | 71C00529 | Gasket XR 008 PP180 B |
| 711818 | Seeger ring SW 11x1 | 720025 | Motor driving rod |
| 711821 | Seeger ring JV 20x1 | 711869 | Spring |
| 711721 | Balsele B-110078/B/NEO | 711865 | Screw M10 |
| 711722 | Balsele B-094063/B/NEL | 72A00126 | Complete motor |
| 711819 | Balsele 8-070039/1 | 74000051 | Body cover kit |
