配件料號：

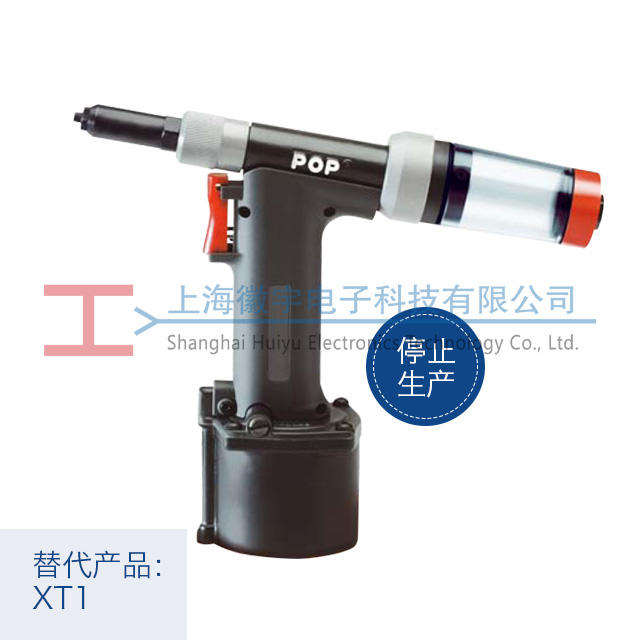

| 型號：1600氣動鉚釘槍 | |||
| Designation | Articleno. | Designation | Articleno. |
| PRN414 | Nosepiece 4 size | DPN900-011 | O-Ring |
| PRG402-8A | Jaws | DPN900-012 | O-Ring |
| DPN239-006 | Jaw Guide | DPN239-068 | J Valve Rod |
| DPN239-007 | Pulling Head | DPN239-069 | EXT Silencer |
| DPN239-008 | Jaw Guide Lock | DPN900-013 | O-Ring |
| DPN239-009 | Nose Housing | DPN239-071 | Valve Stopper |
| DPN900-001 | O-Ring | DPN239-120 | Fitting |
| DPN239-011 | Nose Housing Nut | DPN239-121 | Air Tube |
| DPN239-144 | Jaw Pusher | FAN239-074 | S.V Case Assembly |
| DPN901-001 | Jaw Pusher Spring | DPN900-014 | O-Ring |
| DPN901-002 | Spring | DPN902-001 | Retaining Ring |
| DPN239-018 | Spring Receiver | DPN239-078 | S Valve Rod |
| DPN239-019 | Hydraulic Piston | DPN906-001 | Button Hd Cap Screw |
| DPN239-020 | Housing Adapter | DPN239-150 | Trigger |
| DPN900-002 | O-Ring | DPN239-083 | Connect Tube |
| DPN239-022 | Rod Seal Case | DPN900-015 | O-Ring |
| DPN908-001 | Scraper | DPN239-151 | Handle Assembly |
| DPN900-003 | O-Ring | DPN907-001 | Socket Hd Cap Screw |
| DPN908-002 | B.U-Ring | DPN239-086 | Hexagon Nut |
| DPN908-003 | Penta Seal | DPN907-004 | Socket Hd Cap Screw |
| DPN908-004 | B.U-Ring | DPN900-016 | O-Ring |
| DPN900-004 | O-Ring | DPN239-089 | Plug |
| DPN239-029 | Handle Upper | DPN907-003 | Socket Hd Cap Screw |
| DPN901-003 | Return Spring | DPN239-091 | Chamber |
| DPN900-005 | O-Ring | DPN239-126 | R Joint Spacer |
| DPN239-111 | MCS Valve Rod | DPN239-093 | R Joint |
| DPN239-112 | MCS Cap | DPN239-127 | R Joint Adapter |
| DPN239-034 | End Cap Adapter | DPN239-095 | O S Slider |
| DPN900-019 | O-Ring | DPN900-017 | O-Ringer |
| DPN239-036 | Slider | DPN239-097 | O S Joint |
| DPN239-181 | Hook | FAN239-166 | Collector Assembly |
| DPN239-153 | End Cap | DPN239-098 | Collector Lock Collar |
| DPN239-116 | Collar | DPN900-018 | O-Ring |
| DPN239-154 | Collar Screw | DPN903-001 | Flat Head Cap Screw |
| DPN239-118 | Ejector Guide | DPN239-155 | Collector Lock |
| DPN900-006 | O-Ring | DPN239-130 | Collector Body |
| DPN907-002 | Socket Hd Cap Screw | DPN900-020 | O-Ring |
| DPN239-119 | End Cap Plate | DPN239-168 | Collector Silencer |
| FAN239-043 | Ejector Assembly | DPN239-156 | Collector End |
| DPN239-108 | Packing | DPN239-167 | Collector End Cap |
| DPN239-047 | Fill Screw | DPN239-152 | Collector End Nut |
| DPN900-007 | O-Ring | DPN900-021 | O-Ring |
| DPN900-008 | DPN239-163 | Deflector Adapter | |
| DPN900-009 | DPN900-022 | O-Ring | |
| DPN239-147 | Sleeve Upper | PRG510-56 | Deflector |
| DPN239-052 | Upper Plate | FAN239-176 | Jaw Pusher Assy |
| DPN239-053 | Sleeve Lower | FAN239-157 | Air Line Assembly |
| DPN908-005 | Penta Seal | DPN239-158 | Air Line |
| DPN908-006 | B.U-Ring | DPN239-159 | Air Line Fitting |
| FAN239-148 | Handle Lower Assy | DPN239-160 | Hose Female Fitting |
| FAN239-059 | Air Piston Assembly | PRG540-45 | O-Clamp (0911) |
| DPN900-010 | O-Ring | PRN314 | Nosepiece 3 size |
| DPN239-063 | Sleeve Lock Nut | PRN514 | Nosepiece 5 size |
| DPN239-064 | Bottom Plate | DPN239-139 | HS Screw key - M4 |
| DPN239-065 | J Valve Cap | ||
